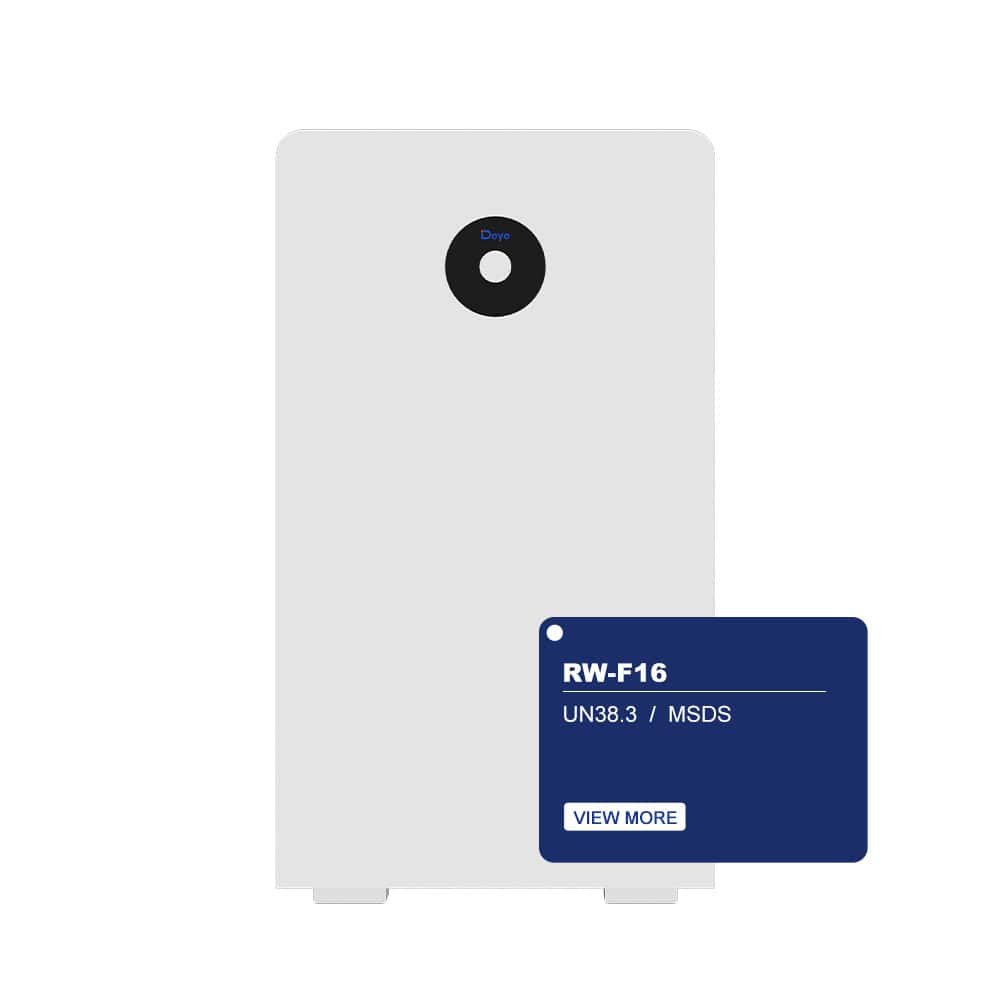

Deye Low Voltage Battery RW-F16

+ Free Shipping

Key Features:

Maximum Output Power: 8 kW with the ability to connect up to 32 units in parallel, providing scalability up to 512 kWh, perfect for larger energy needs.
Battery Chemistry: Employing Lithium Iron Phosphate (LiFePO4) technology, known for its safety and longevity, with over 6000 cycles at 90% Depth of Discharge (DoD).
Robust Built-in Protection: Equipped with a built-in circuit breaker for added safety during charging (160A) and discharging (160A).
Versatile Operating Conditions: Charge from 0℃ to 55℃ and discharge in extreme conditions from -20℃ to 55℃, ensuring efficiency in varying climates.
Remote Monitoring and Firmware Upgrade: Supports remote management and firmware upgrades via Deye inverter, allowing for effortless monitoring and maintenance.
Flexible Installation Options: Wall and floor-mounted configurations fit seamlessly into residential settings.

Specifications:

Model: RW-F16
Nominal Voltage: 60 Vdc
Capacity: 125 Ah (usable energy 14.4 kWh @ 90% DoD)
Energy Efficiency: 90% round-trip efficiency with a cycle life of ≥6000 at 25℃.
Physical Dimensions: 480 mm (W) x 830 mm (H) x 235 mm (D)
Weight: Approximately 122 kg
Environmental Ratings: IP20 rating for indoor use with a temperature range of -20℃ to 55℃.
Humidity and Altitude: Humidity tolerance up to 95% and operates effectively below 2000 m altitude.
Warranty Period: 5 years, ensuring peace of mind and reliability.

Typical Applications:

The Deye RW-F16 is perfect for residential energy backup, ensuring you stay powered during outages and can optimize your energy consumption sustainably.

Invest in the Deye RW-F16 for a smart, safe, and efficient energy storage solution that supports your active lifestyle while being friendly to the environment.
