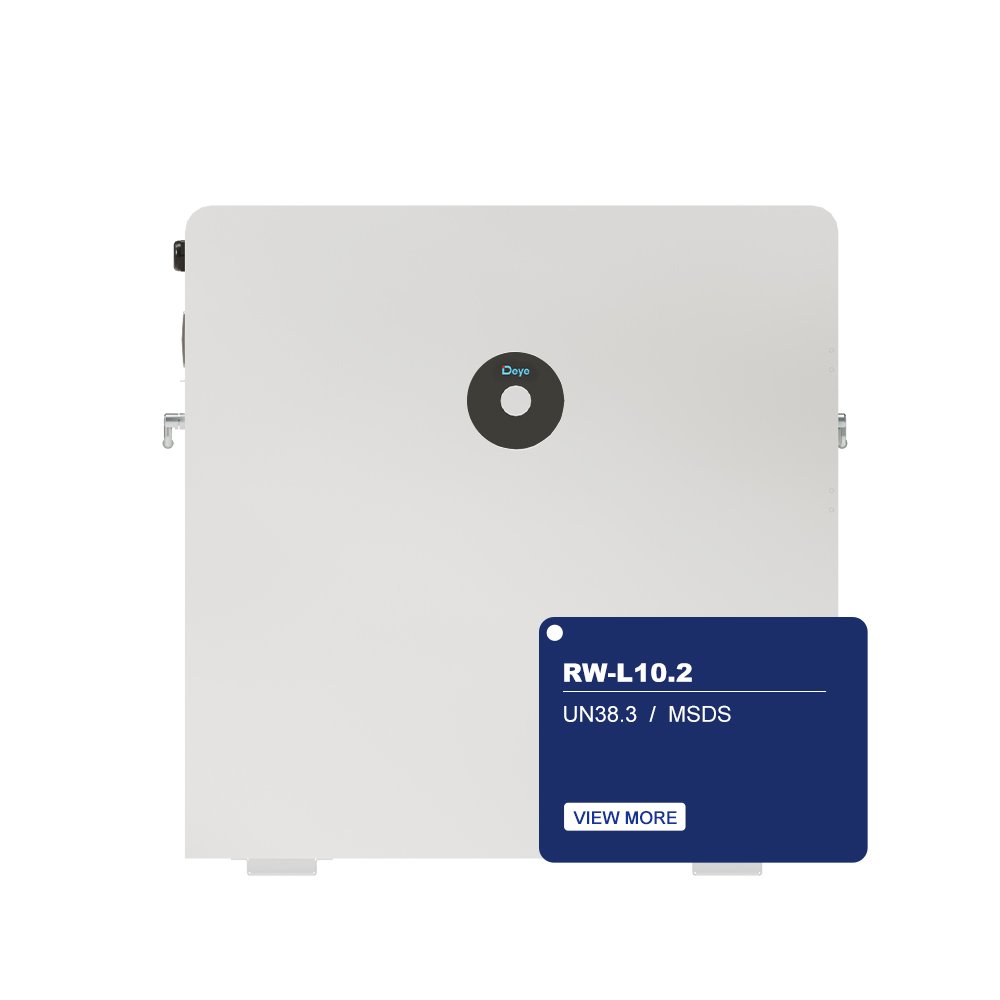

Deye Low Voltage Battery RW-L10.2

+ Free Shipping

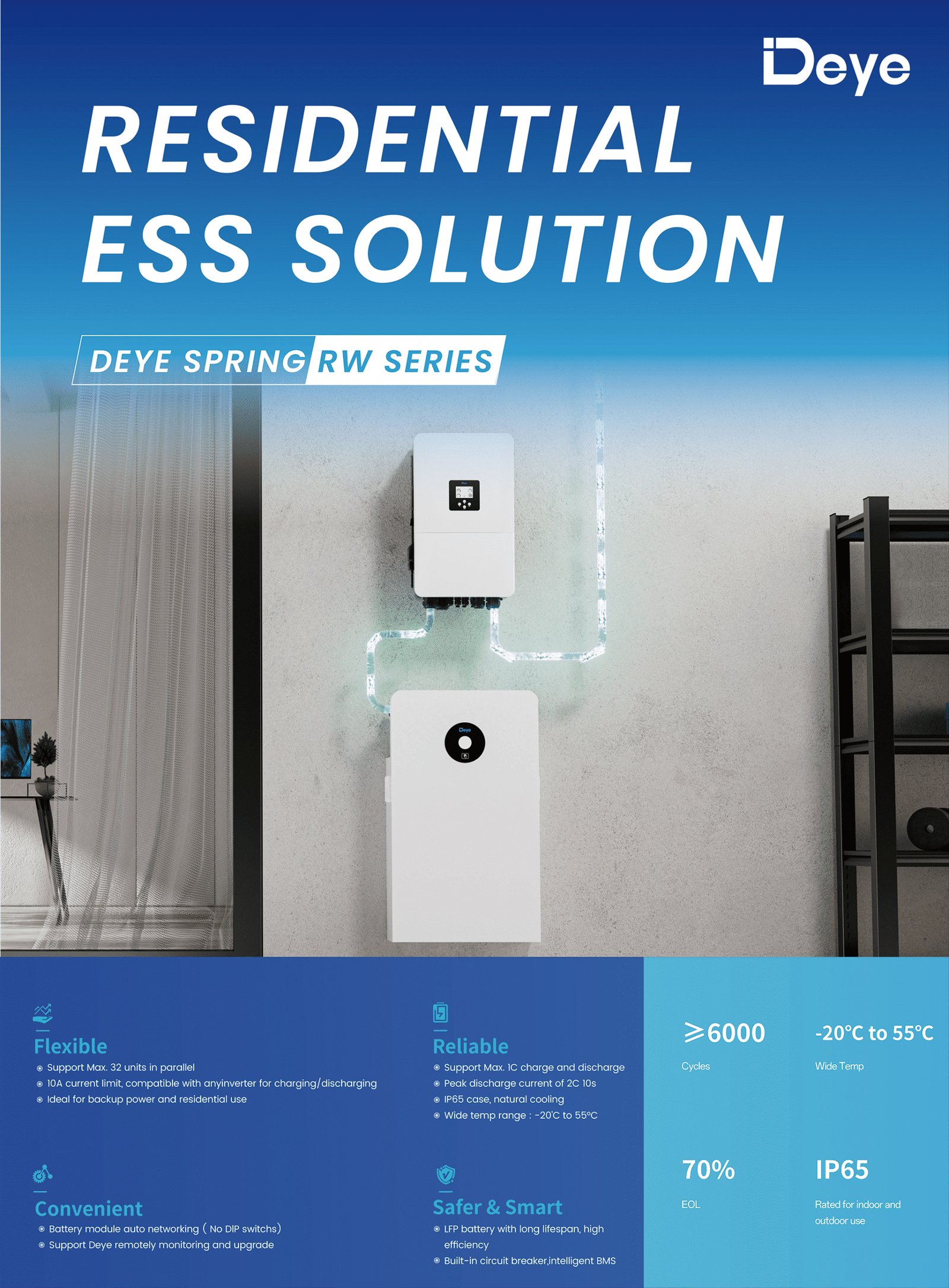

Key Features:

High Performance with Scalability: Supports a maximum of 32 units in parallel, allowing for expansive energy capacity that can be tailored to your specific needs.
Long Lifespan Battery Chemistry: Utilizes LiFePO4 (Lithium Iron Phosphate) technology, offering a cycle life of over 6000 cycles at 25°C, ensuring sustainable and long-term performance.
Safety and Reliability: Built-in circuit breaker and intelligent Battery Management System (BMS) enhance safety and optimize operation.
Wide Operating Temperature: Functions efficiently within a temperature range of -20°C to 55°C, making it suitable for diverse climates.
User-Friendly Monitoring: Supports remote monitoring and upgrade through Deye’s platform, providing you real-time insights into energy usage and health.
Easy Installation: Rack-mounted or wall-mounted installation options give you flexibility in setup.
Efficient Energy Usage: High usable energy of 9.22 kWh (at 90% Depth of Discharge), perfect for residential backup power and electricity cost management.

Specifications:

Model: RW-L10.2
Battery Chemistry: LiFePO4
Nominal Voltage: 51.2 V
Capacity: 200 Ah
Nominal Energy: 10.24 kWh
Usable Energy: 9.22 kWh @ 90% DoD
Maximum Continuous Charge/Discharge Current: 125 A
Peak Discharge Current: 300 A (10 seconds)
Dimensions: 745 × 745 × 170 mm (W × H × D)
Weight: Approximately 100 kg
IP Rating: IP65 (waterproof and dustproof)
Operating Temperature: Charge: 0 ~ 55°C / Discharge: -20 ~ 55°C
Storage Temperature: -20 ~ 55°C
Humidity: Relative Humidity up to 95%
Altitude: ≤ 2000m
Warranty Period: 10 years
Energy Throughput: 16 MWh
Certification: UN38.3, MSDS

The Deye RW-L10.2 Energy Storage System is a smart, efficient, and flexible solution for residential energy needs. With its advanced features and robust specifications, it is designed to deliver powerful performance while ensuring safety and ease of use. Invest in your energy independence today with Deye’s reliable battery technology.
