INTRODUCTION

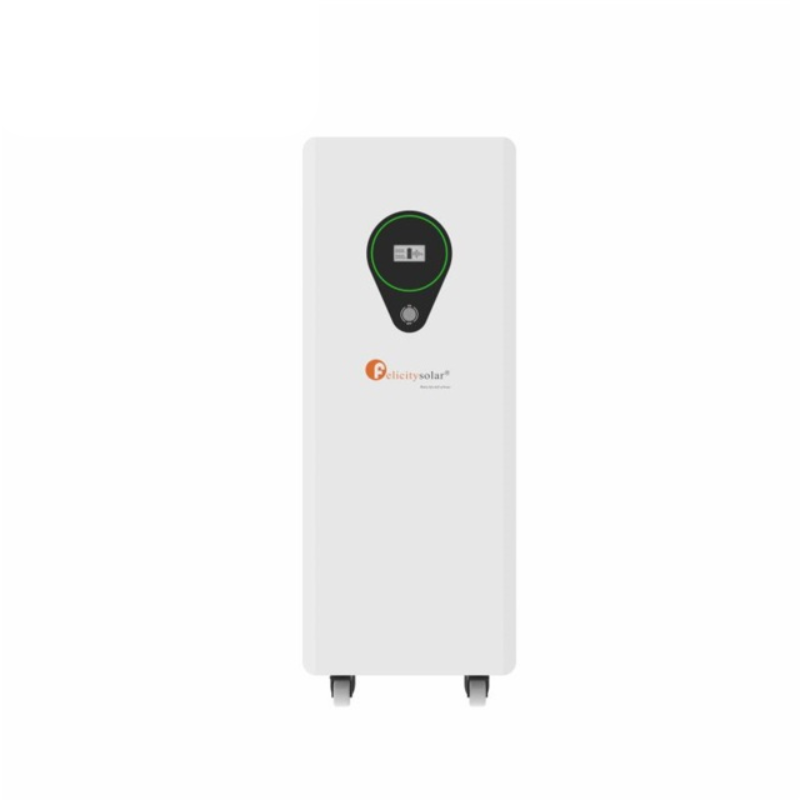

Powerful 17.5kWh LiFePO4 Battery for Solar Systems
The LPBF 17.5kWh 48V 350Ah LiFePO4 Battery by Felicity Solar provides high-capacity energy storage, designed to meet the demands of solar power systems. Its efficient power output ensures stable and reliable performance for various energy needs.
Advanced Battery Management System (BMS) for Safety and Longevity
This battery comes with an integrated BMS that ensures optimal performance, protecting against overcharging, over-discharging, and short circuits. The BMS maximizes the lifespan of the battery, providing dependable energy storage.
Eco-Friendly and Long-Lasting Energy Solution
With its LiFePO4 chemistry, this battery offers an environmentally-friendly alternative with long cycle life and high energy density, making it ideal for long-term solar energy storage needs.
Perfect for Residential and Commercial Applications
This battery pack is versatile, making it suitable for home solar installations, commercial setups, and off-grid systems. Its high capacity ensures uninterrupted energy flow for both small and large systems.
LPBF48350 BATTERY SYSTEM SPECIFICATIONS
| Model | LPBF48350 |
| Usable Capacity | 17.5KWH |
| Nominal Voltage | 51.2V |
| Voltage Range | 48-57.6V |
| Recommend Charge & Discharge Current | ≤200A |
| MAX. Charge & Discharge Current | 250A@120S |
| Recommend Output Power | ≤10000W |
| MAX. Output Power | 12500W@120S |
| DOD | ≥95% |
| Modules Connection | 1~6in parallel |
| Communication | CAN&RS485 |
| Ingress Protection | IP21 |
| Cycle Life | ≥6000@25°C, 80%DOD |
| Working Temperature Range | Discharge:-20 to +60°C, Charge:0 to+55°C |
| Net Weight(KG) | 154KG |
| GrossWeight(KG) | 177KG |
| Product Dimension (mm) | 622*350*955 mm |
| Package Dimension (mm) | 718*450*1112 mm |
