Product Introduction

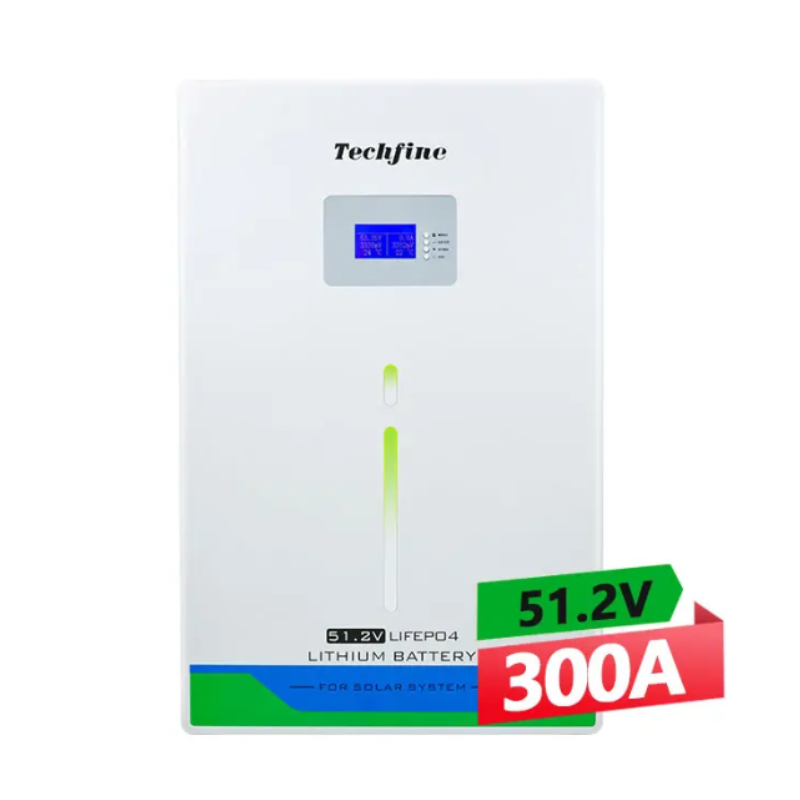

| Model | LB300AH/48VK |
| Battery Voltage(V) | 51.2 |
| Battery Capacity(AH) | 300 |
| Max Charging Voltage(V) | 58.4 |
| Max Charging Current(A) | 50 |
| Max Discharging Current(A) | 100 |
| Working Voltage Range(V) | 44~58.4 |
| Charging Temperature Range | 0℃~60℃ Working below 0℃ will affect the full capacity of the battery |
| Discharging Temperature Range | -20℃~60℃ Working below 0℃ can affect the full capacity of the battery |
| Storage | -40℃~55℃@60%±25% humidity |
| Size(L*W*H mm) | 970*760*195 |
| Weight(KG) | 148 |
| Assemble | Wall Mounted |
| LCD Display | Battery Capacity, Output Voltage and Current |
| LED Light | Capacity, Working and Fault |
| Communication Port | With RS232, RS485, CAN |
| Support BMS Communication Software: Victron、Pylon、Deye、SMA、Growatt、Goodwe、Voltronic、PCHNE、Sofar、MEGAREVO、TBB | |
